DESCRIPTION

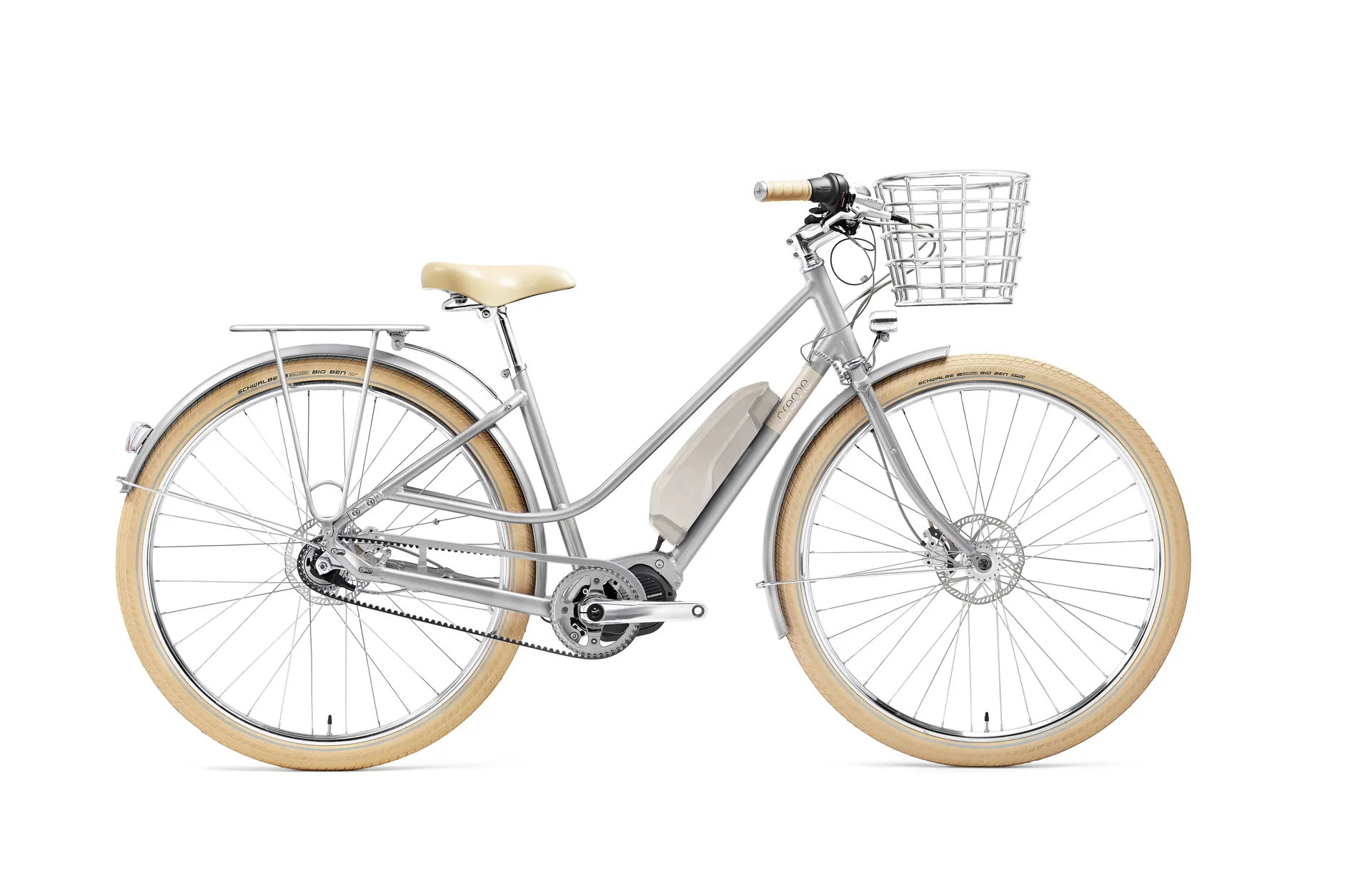

The Eve E7 Belt is a comfortable and elegant electrically assisted bicycle that is built around Shimano's new E5000 motor. The upright, relaxed position will allow you to enjoy the views, while the electric motor will make it a breeze to cover long distances and climb hills. One of the key features of this bicycle is the Gates belt drive system. We are in love with this solution. You have to try yourself to really appreciate how much more practical it is in everyday use than a traditional chain.

SPECIFICATION
Bottom bracket:integrated with Shimano STEPS
Brake front:Tektro Vela hydraulic disc brakes
Brake rear:Tektro Vela hydraulic disc brakes
Carrier / Basket:aluminium rear rack / basket
Belt:GATES CDX BELT DRIVE
Crankset:Creme classic cranks, high polish finish aluminium, 170 mm, 46tgates CDN Sprocket
Mudguards:aluminium painted
Fork:Lugged Cro mo fork
Frame:Aluminium
Grips: Creme custom grips with alloy bar-neds
Handlebar: “albatros” type, aluminium, width: 580mm
Headset:Threadless 1 1 /8''
Hub front:Joytech disc hub 32, QR
Hub rear:Shimano Nexus SGC3001-7D 7-speed hub, 32H, 24t Gates CDX sprocket
Light front:Union retro LED, dynamo, 20 lux, STVZO compatible
Light rear:Spanninga Pixeo XDS dynamo hub powered, mudguard mounted, STVZO compatible
Pedals:VP-628
Rims:disc brake, aluminium, double wall
Saddle: Creme
Seatpost:Aluminium, 27.2mm
Shifters:Shimano Nexus 7 speed
Spokes: stainless steel
Stand: aluminium

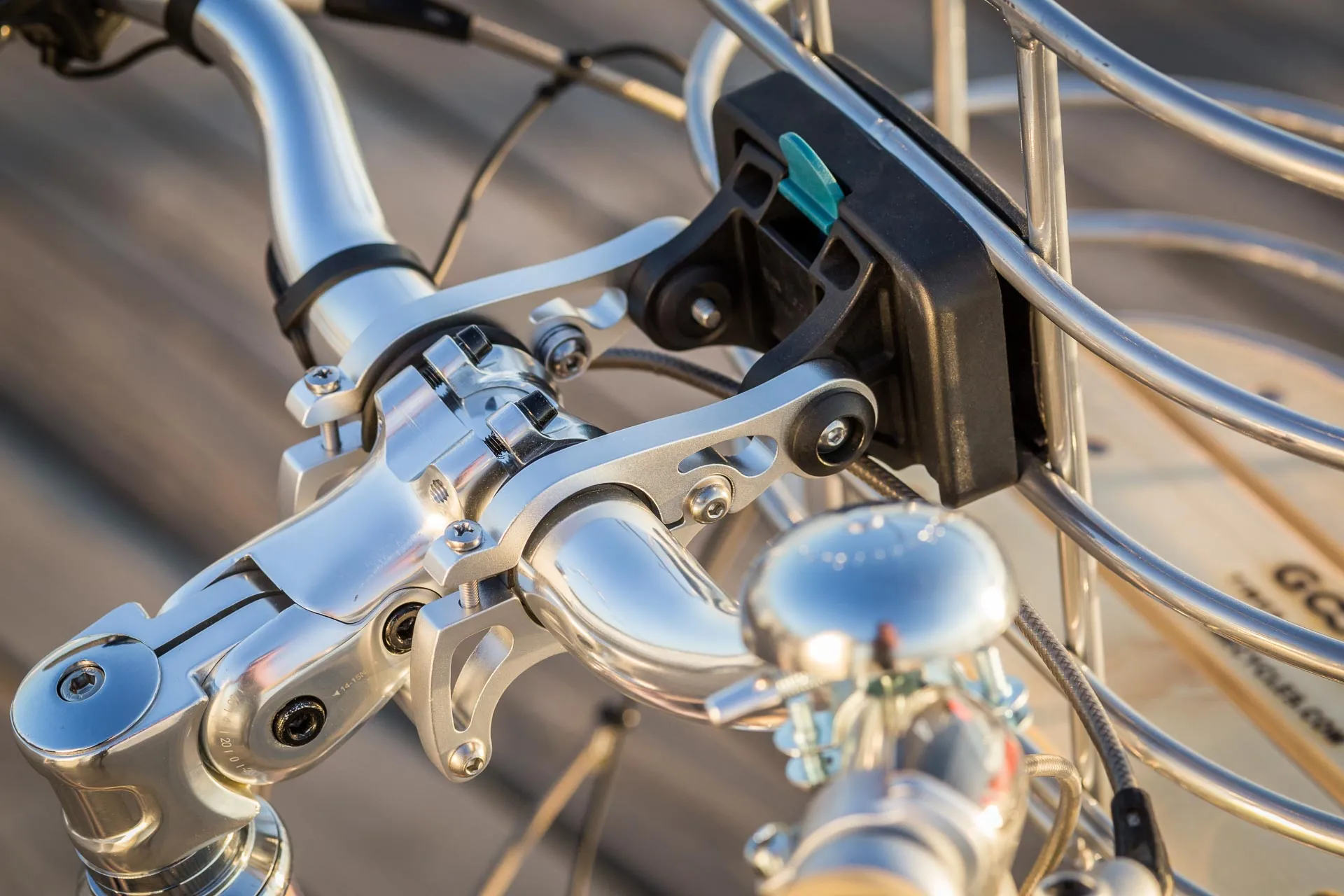

Stem:Satori aluminium stem ext 100mm, polished
Tyres:Impac Big Pac 50-622, 28X2.00
Weight: 24,1kg

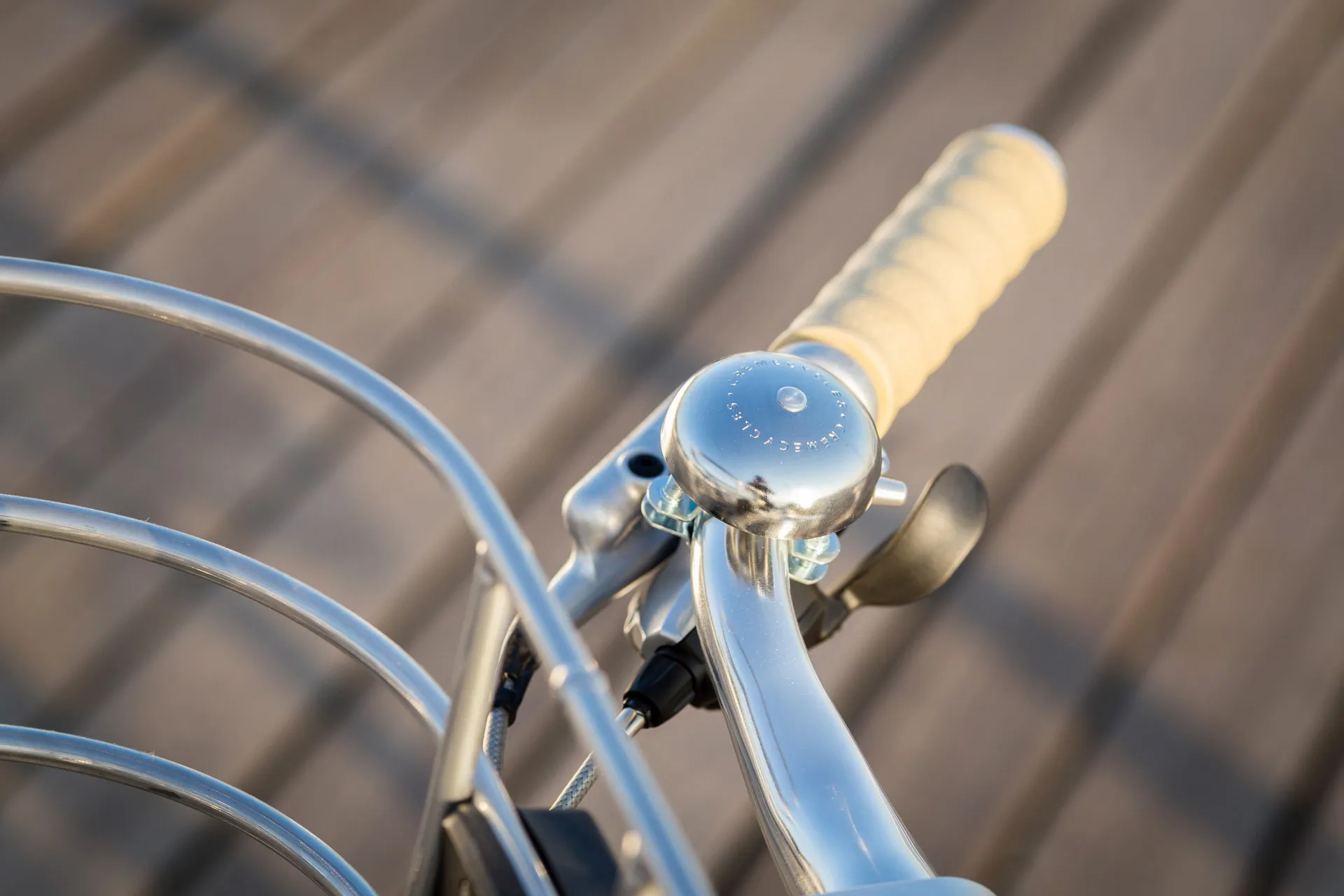

Additional: stylish bell
Electric Drive:Shimano STEPS E5000

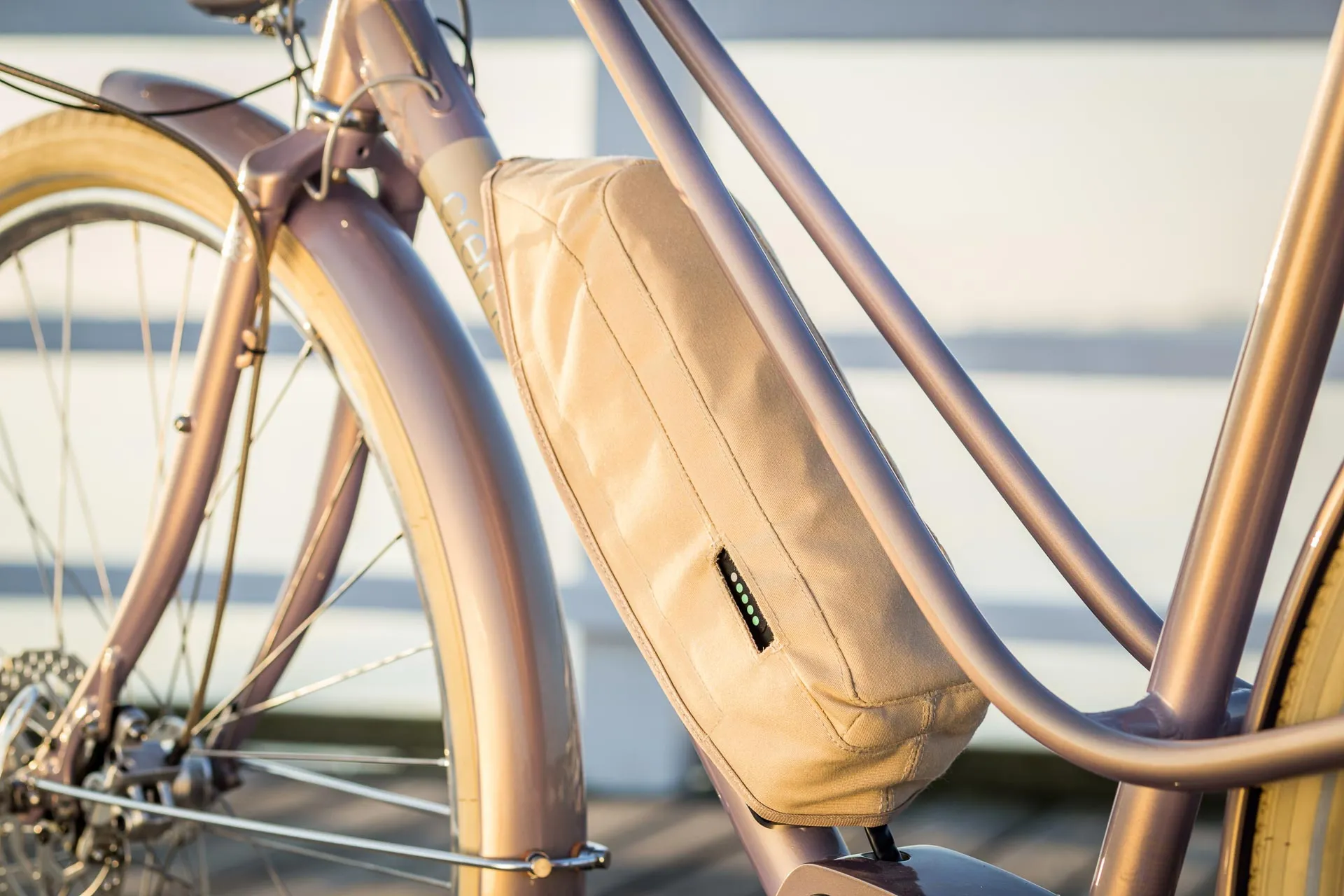

Battery: 504 Wh
SIZING
S-M |
148CM - 160CM |
| |
SEAT TUBE:445MM | HEAD ANGLE:68 |
TOP TUBE:580MM | SEAT ANGLE:71 |
CHAINSTAY: 465MM | |
M-L |
160CM - 174CM |
| |
SEAT TUBE: 520MM | HEAD ANGLE:68 |
TOP TUBE:605MM | SEAT ANGLE:71 |
CHAINSTAY: 465MM | |
