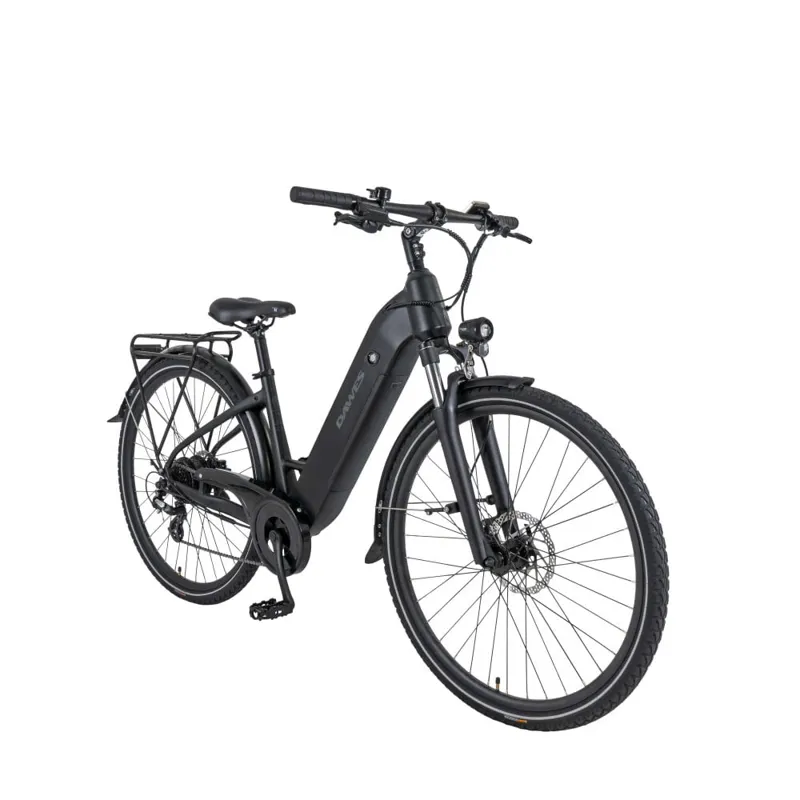

The all-new dawes spire 1.0 low step electric bike is a versatile hybrid; perfectly suited for the daily commute, popping to the shops or a weekend of riding your local country park and canal towpaths.

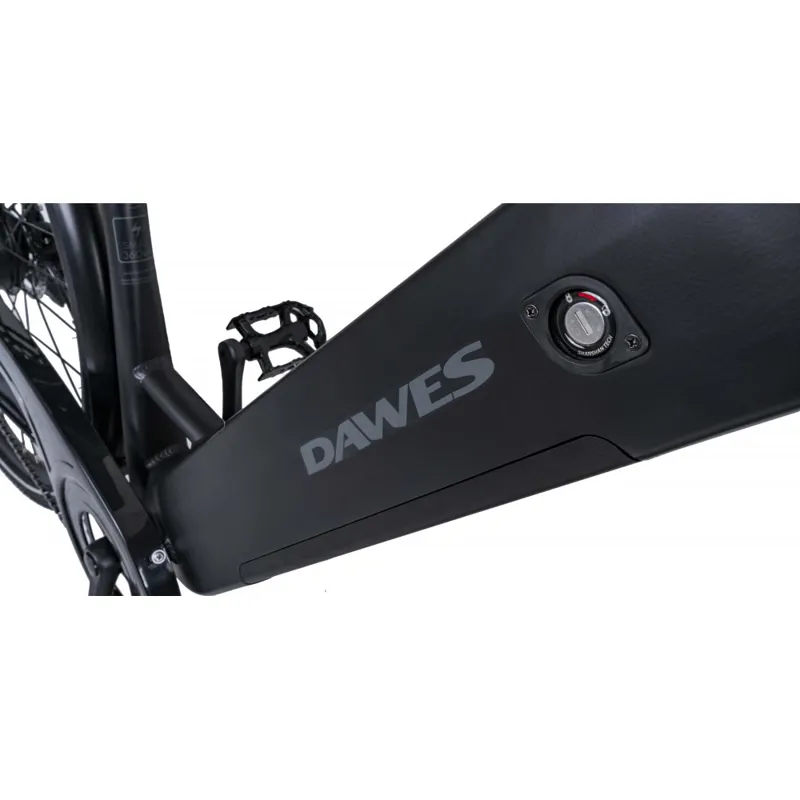

The low step frame is equipped with a neatly integrated 360wh battery that can deliver over
of assisted pedalling. The power is delivered from within the bafang rear hub motor, a brand who is quickly establishing themselves as one of the leading bicycle motor brands with excellent build quality, performance and value for money. With 32nm of torque, the spire 1.0 delivers plenty of power to keep the wheels turning up dragging hills and make flat terrain a breeze.
The battery uses high quality cells from samsung, another leading brand in the electric bike industry and all pass the most stringent safety and performance tests required by uk and eu law for peace of mind. The battery can be charged on or off the bike, with a complete charge from flat within
and is easily removed without tools for added convenience. An integrated battery lock ensures peace of mind when left in public.
and plenty of information to track your ride including; battery level, current speed, average speed, max speed, trip distance and trip time.
To make things easy when off the bike, they've fitted a walk assist mode that engages the motor to help drive the bike when pushing up steep hills.
The spire 1.0 is quipped with dependable 1x8 speed Shimano altus gearing and powerful, low maintenance Tektro hydraulic disc brakes to help keep you in control when navigating the city traffic or local cycle path.
A 70mm travel suspension fork with hydraulic lockout takes care of bumps and uneven terrain while the adjustable stem ensure you can tailor the height of the handlebars so that you are as comfortable as possible.
For rider contact points youll find a comfortable selle royal freeway saddle, ergonomically shaped grips and alloy city pedals. The 700x45c kenda tyres are grippy and fast rolling with added puncture protection to help keep flat tyres at bay while the reflective detailing increases visibility in low light and nighttime settings.
Lastly, the spire 1.0 comes as standard with bright front and rear led lights that are powered directly by the battery, a rear pannier rack for transporting luggage, mudguards to avoid tyre spray and a handy kickstand for parking your bike.
Maximum Range
28 miles / 45km
Recharge Time
5 hours
Maximum Assisted Speed
15.5mph / 25kmh
Motor
Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed
Motor Type
Rear hub motor
Motor Torque
32nm
Battery
Integrated 360wh (36V 10.0ah), Samsung cells, Removable for charging on or off the bike
Battery Type
Integrated
Charger
42V 2A, 3 pin UK plug

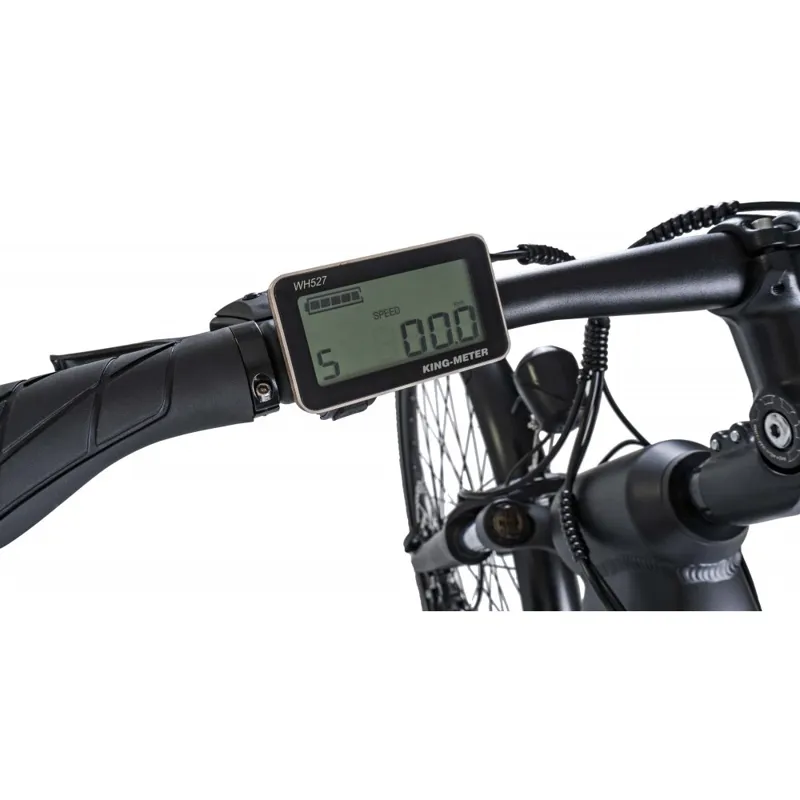

Display
Handlebar LCD display, 5 modes, Walk assist, Battery Indicator, Speed, Average speed, Max speed, Odometer, Trip, Trip Time
Speed Sensor
Left hand crank mounted
Frame
6061 aluminium low step frame, Internal cable routing, Fully integrated removable battery, 700c wheels
Frame Size
Medium
Fork
700c suspension fork, Hydraulic lockout, 70mm travel
Headset
Sealed bearings
Handlebar
Aluminium, 680mm wide, 15° backsweep
Stem
Adjustable, Aluminium, 90mm reach, 31.8mm
Grips
Ergonomic comfort, Lock on, Black
Gear Shifters
Shimano Altus SL-M315 Rapidfire Plus, 8 speed

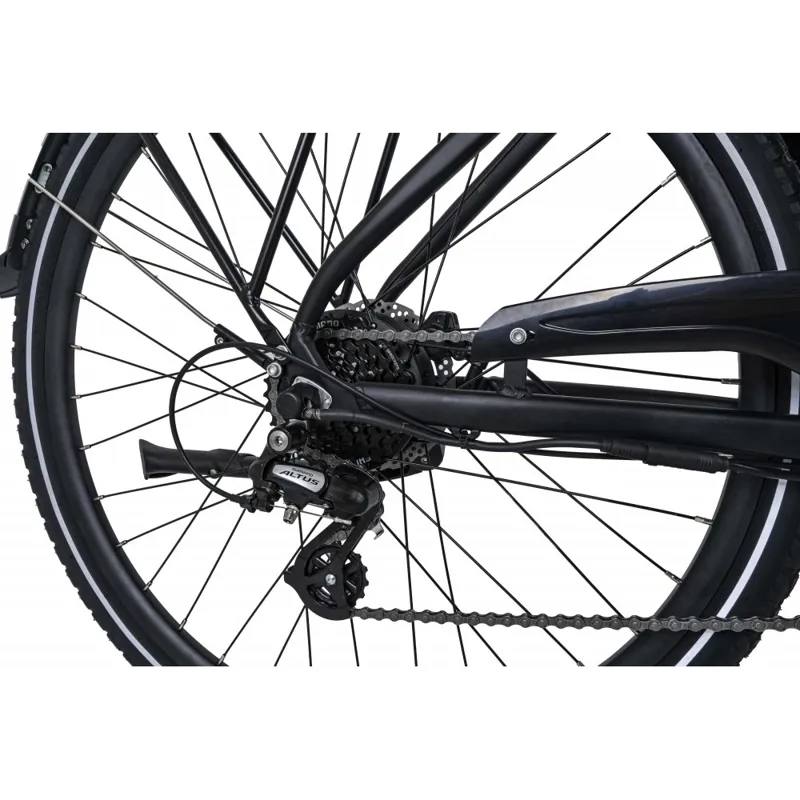

Rear Derailleur
Shimano Altus RD-M310, 8 speed
Chain
KMC Z8.1, 8 speed
Cassette/Freewheel
Shimano Altus CS-HG200, 12-32T, 8 speed
Chainset
Aluminium, 42T, 170mm
Number of Gears
8
Bottom Bracket
Sealed
Pedals
Alloy city style, Black
Brakes
Tektro M275 hydraulic disc, 180mm rotor (front), 160mm rotor (rear)
Brake Levers
Tektro M275 hydraulic disc
Front Hub
Alloy with quick release, 36 hole
Rear Hub
Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed
Rims
700c double wall alloy, 36 hole
Tyres
Kenda K197, 700x45c, Puncture protection and reflective side strip
Saddle
Selle Royal Freeway
Seat Post
Quick release, 34.9mm
Lights
Front - Star Union LED, 20 Lux, Fork mounted, Powered by bike battery / Rear - Star Union 3 LED with integrated reflector, Pannier rack mounted, Powered by bike battery
Mudguards
Full length, 56mm wide, Black
Kickstand
Chainstay mounted, Aluminium

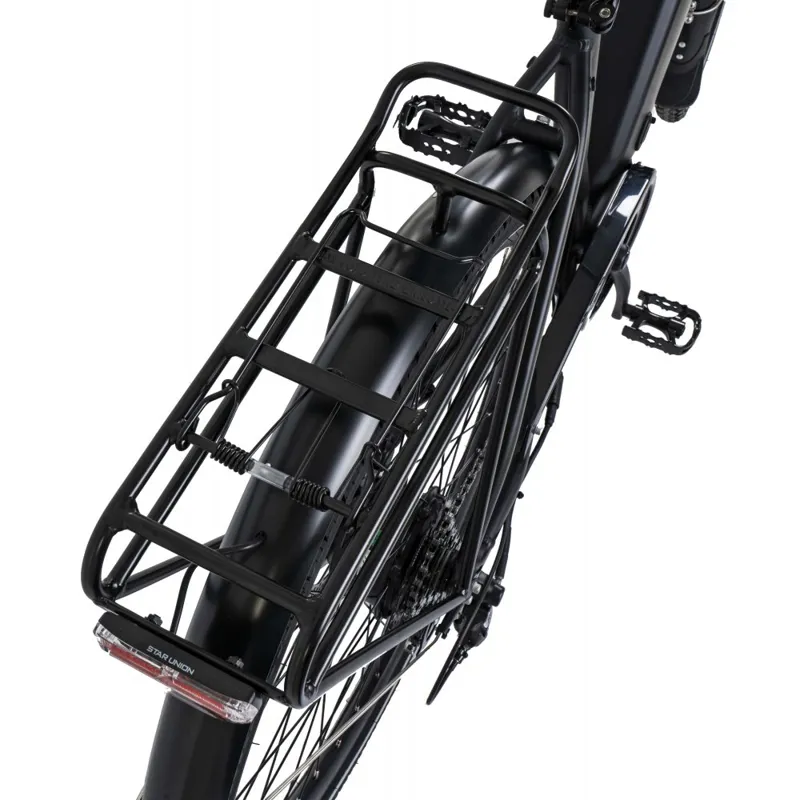

Pannier Rack
Aluminium with rear light mounted
Maximum Range
28 miles / 45km
Recharge Time
5 hours
Maximum Assisted Speed
15.5mph / 25kmh
Motor
Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed
Motor Type
Rear hub motor
Motor Torque
32nm
Battery
Integrated 360wh (36V 10.0ah), Samsung cells, Removable for charging on or off the bike
Battery Type
Integrated
Charger
42V 2A, 3 pin UK plug
Display
Handlebar LCD display, 5 modes, Walk assist, Battery Indicator, Speed, Average speed, Max speed, Odometer, Trip, Trip Time
Speed Sensor
Left hand crank mounted
Frame
6061 aluminium low step frame, Internal cable routing, Fully integrated removable battery, 700c wheels
Frame Size
Small
Fork
700c suspension fork, Hydraulic lockout, 70mm travel
Headset
Sealed bearings
Handlebar
Aluminium, 680mm wide, 15° backsweep
Stem
Adjustable, Aluminium, 90mm reach, 31.8mm
Grips
Ergonomic comfort, Lock on, Black
Gear Shifters
Shimano Altus SL-M315 Rapidfire Plus, 8 speed
Rear Derailleur
Shimano Altus RD-M310, 8 speed
Chain
KMC Z8.1, 8 speed
Cassette/Freewheel
Shimano Altus CS-HG200, 12-32T, 8 speed
Chainset
Aluminium, 42T, 170mm
Number of Gears
8
Bottom Bracket
Sealed
Pedals
Alloy city style, Black
Brakes
Tektro M275 hydraulic disc, 180mm rotor (front), 160mm rotor (rear)
Brake Levers
Tektro M275 hydraulic disc
Front Hub
Alloy with quick release, 36 hole
Rear Hub
Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed
Rims
700c double wall alloy, 36 hole
Tyres
Kenda K197, 700x45c, Puncture protection and reflective side strip
Saddle
Selle Royal Freeway
Seat Post
Quick release, 34.9mm
Lights
Front - Star Union LED, 20 Lux, Fork mounted, Powered by bike battery / Rear - Star Union 3 LED with integrated reflector, Pannier rack mounted, Powered by bike battery
Mudguards
Full length, 56mm wide, Black
Kickstand
Chainstay mounted, Aluminium
Pannier Rack
Aluminium with rear light mounted
