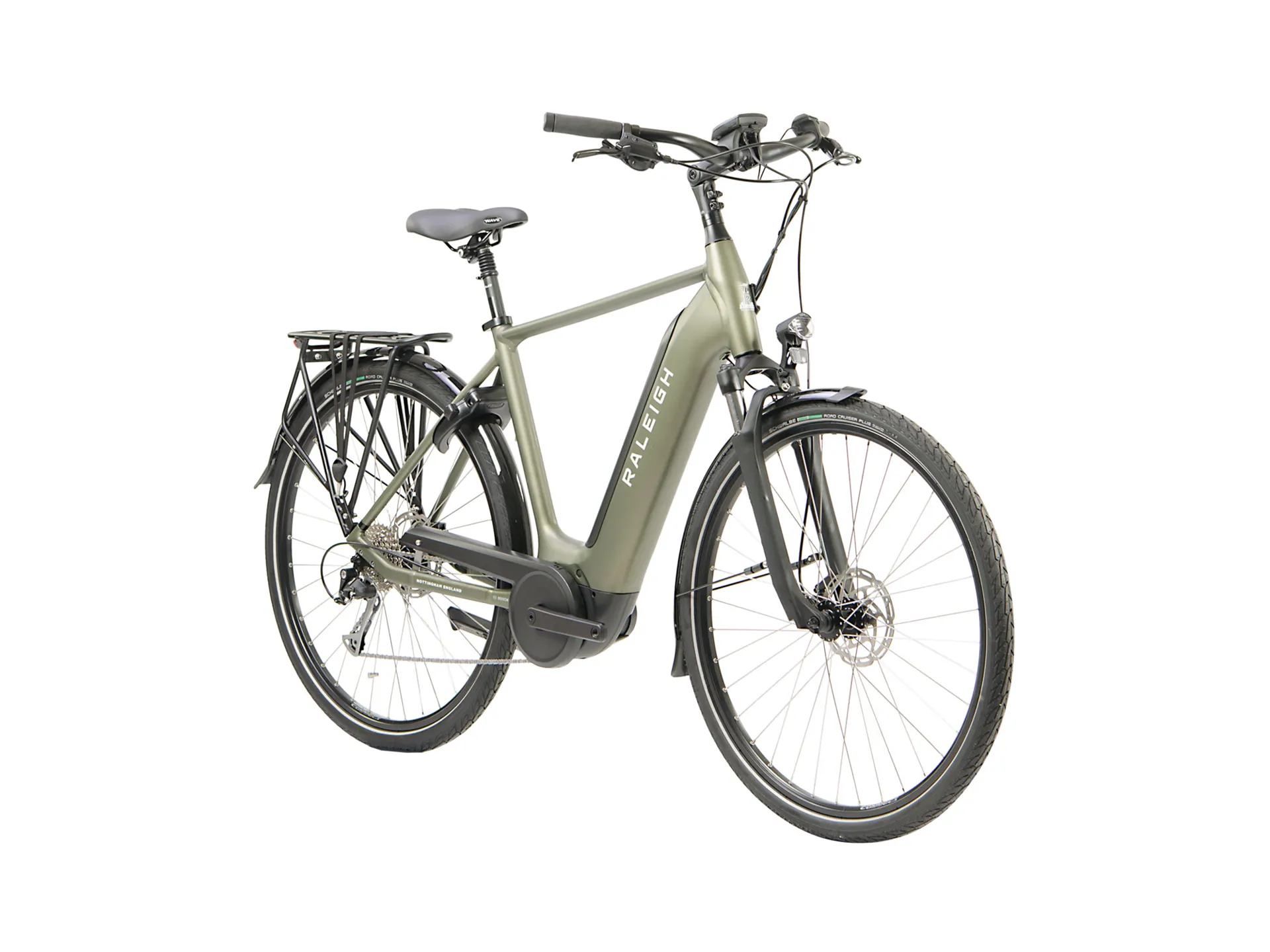

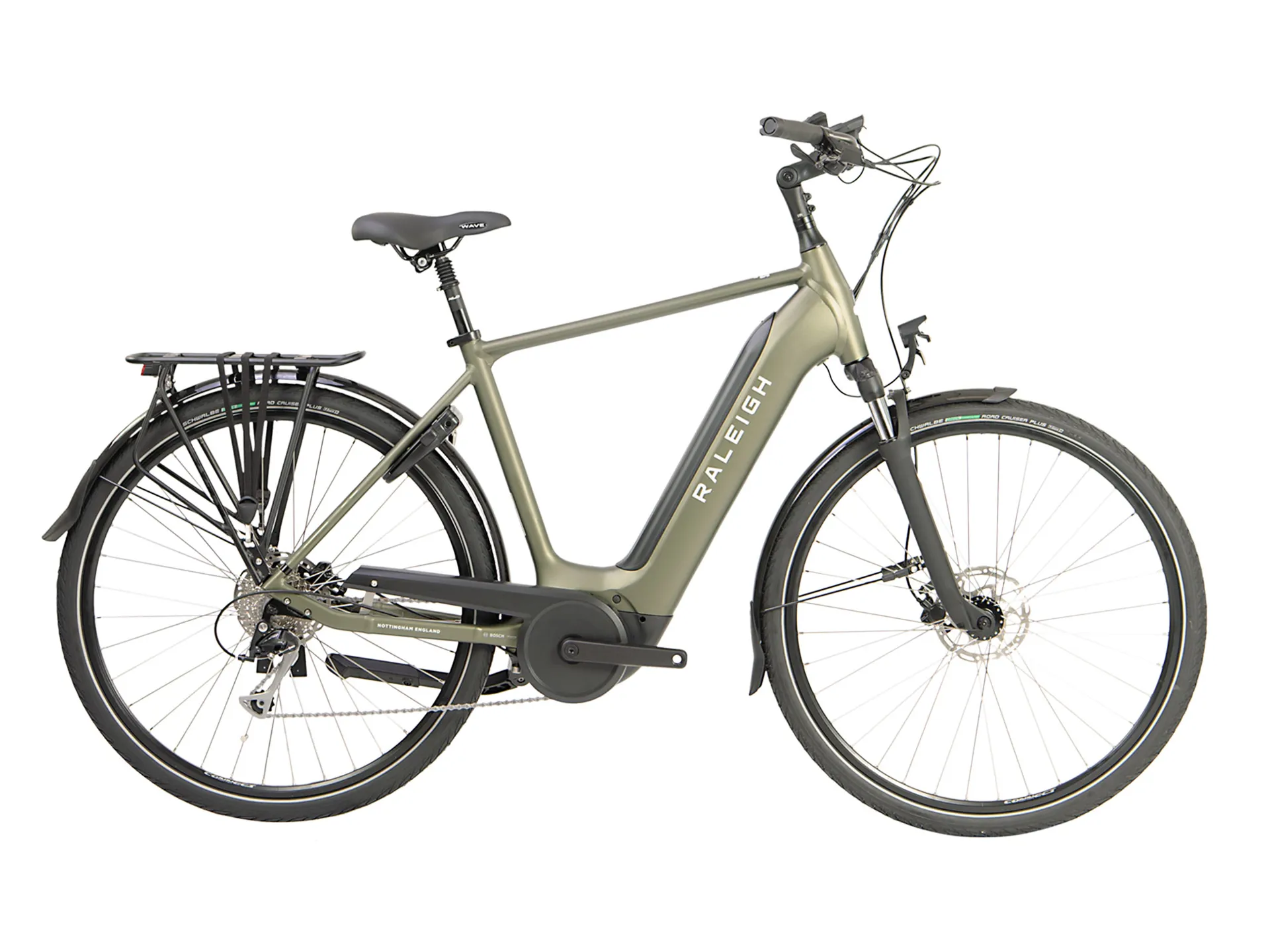

Cycling doesn’t have to be all lycra shorts and sweating (unless that’s what you’re into). What if we told you you could enjoy all the benefits of a regular bike – the cooling breeze, the scenic detours, the fast-pass through traffic – without having your legs turn to jelly at the end? Well, now you can. Welcome to the Motus Grand Tour: the electric hybrid bike that turns grunting into gliding. All of the power, less of the pedalling.
The Motus Grand Tour is our most specced-out e-bike in the Motus range, giving you the freedom to go further and faster than you ever thought possible. Thinking you can’t bike to the next city over? Think again. With power-assisted pedals boosting your pedal power by up to 270%, cross-country cycling isn’t just possible – it’s easy. And with a super-silent Active Line Plus motor, you can revel in the ride without the distracting hum of an engine. All this tech is powered by a 500WH battery, the only question is – where do you want to go?
When you’re ready to kick things up a notch, you can tone down your pedal assistance on the Intuvia Display – no stopping necessary. This handlebar-handy unit also gives you eyes on your speed, battery life and remaining range, making tracking your journey home an easy, stress-free experience.
Along with all the technical stuff, this fully-equipped electric bike comes kitted out with full mudguards, a built-in wheel lock, a kickstand, reflective wheels and integrated lights at the front and rear, promising you a safe, exceptionally comfy ride – whatever the season. And with powerful hydraulic disc brakes and a 9-speed derailleur gear system, you’ll always stay in control.
So – crossbar, low step, or open frame? Choose your frame, choose your route, and discover a world of biking without limits.
Important
Please be aware that this bike is regulated in line with existing Electric Power Assisted Cycles regulations. Any modification to the bike will invalidate the guarantee and in particular any modification which increases the power of the motor and/or the top assisted speed of the bike may make the rider liable to prosecution. Excluding statutory obligations Raleigh will not be held responsible for any injuries incurred following any modification to this product.
Please note - the total travel distance will depend on the capacity of the battery, rider and luggage weight, power mode setting and riding style
* The illustration above is an example. We reserve the right, as long as the type, suitability and purpose of the bike are not reduced, to replace individual parts with components of the same or higher quality, so that the bike is delivered differently. The use of other components is currently mainly caused by delivery problems due to the Corona pandemic.
KEY FEATURES
Bosch 500Wh Powerpack
The 500WH integrated Bosch battery will allow you to ride for up to an impressive 100 miles on a single charge.
Bosch Active Line Plus Motor
A little extra power output, offering extra assistance on moderate inclines. The Active Line Plus motor offers an almost completely noise free experience and a higher level of pedal rate detection to improve cycling efficiency so you can get the maximum enjoyment out of your journeys.

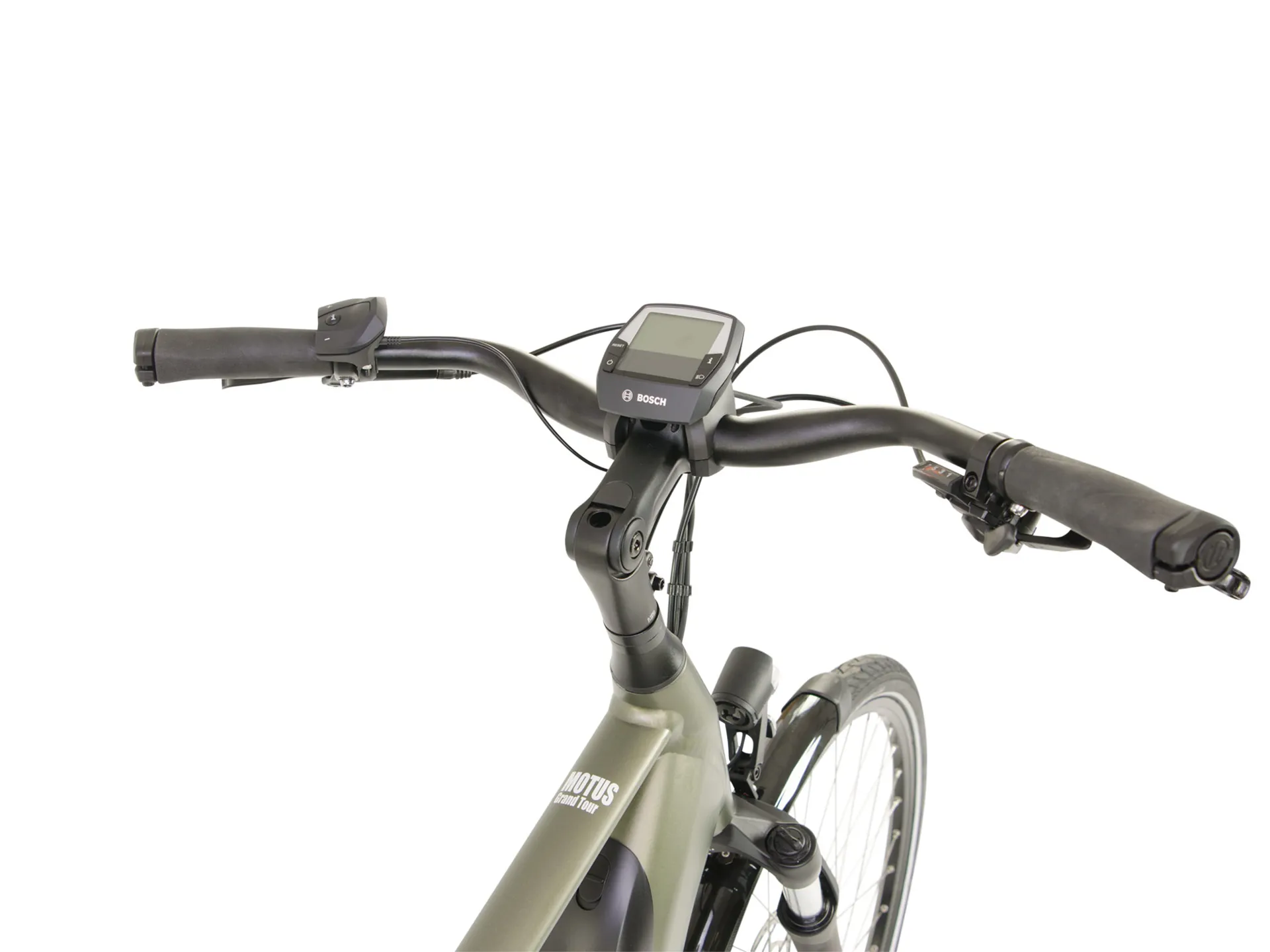

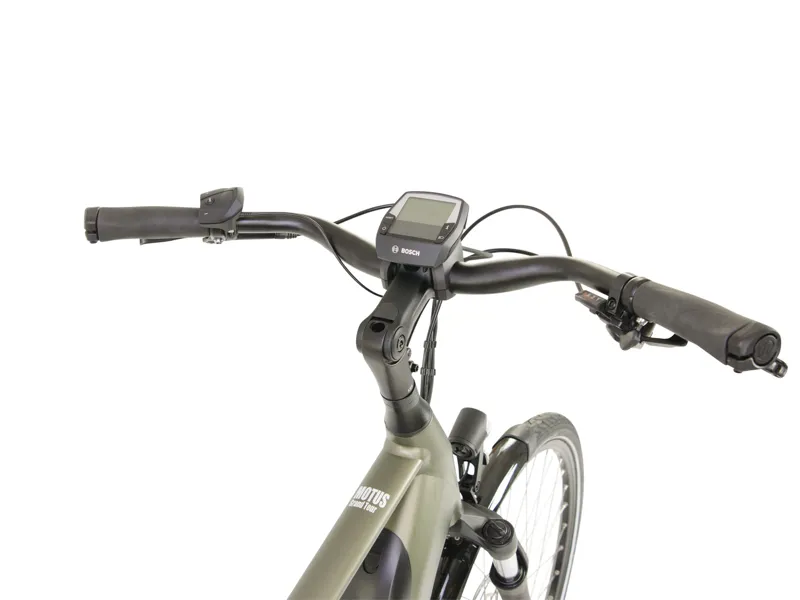

Bosch Intuvia Display
Bosch displays show everything you need to know whilst riding. The sophisticated Intuvia Display offers maximum clarity and convenience with the display screen placed in the centre of the handlebars for easy readability and the control unit is safely on the left handlebar.
SPECIFICATIONS
Fork Type
RST Volant 50mm travel
Frame Material
Aluminium 6061
Total Bike Weight
28kg - Motus Lowstep
Battery Charger Type
Bosch 2A
Battery Charging Time
7 Hours
Battery Integration
Internal
Display Bracket
Bosch Intuvia Display Holder
Motor
Bosch Active Line Plus
Handlebar
Aluminium comfort handlebar 640mm
Seatpost
Alloy Micro Adjust 27.2x300mm
Seatpost Clamp
Aluminium 38.1mm
Stem
Aluminium Adjustable Stem, 90mm
Brake Lever
Tektro T285 Hydraulic Disc brake
Front Brake
Shimano MT200 Hydraulic disc brake, 160mm - lowstep, Tektro T285 Hydraulic disc brake, 160mm
Rear Brake
Tektro T285 Hydraulic disc brake, 160mm, Shimano MT200 Hydraulic disc brake, 160mm - lowstep
Rear Shifter
Shimano Altus 9 speed rapidfire shifter
Cassette
Shimano 9 speed cassette 11-32t
Chain
KMC x9 9 speed chain
Chain Guard Description
Plastic Black Chainguard
Crankset
38T Steel (Silver) with 170mm Alloy Crank Arms
Gear Shift
Derailleur Gear
Pedals
Raleigh 'Anti Slip' Resin
Rear Derailleur
Shimano Alivio 9 speed rear derailleur
Front Tyre
700c x 47 Mitas Flash
Front Wheel Hub
700c double side wall rim with QR aluminium hub 36H
Inner Tubes
622x47 Schrader Valve
Rear Tyre
700c x 47 Mitas Flash
Rear Wheel Hub
700c double side wall rim with QR aluminium hub 36H
Front Light
Herrmans MR.GO front light
Mudguards
Eurofender Full Mudguards
Rear Carrier
Motus MIK compatible carrier
Rear Light
Spanninga Aerflow 2 rear light
Weight Limits (Rider and Cargo)
120 KG
