Following the huge success of the Tripster AT and ATR we wanted to offer a gravel adventure bike that was even more versatile but no less
capable than the Tripster AT or ATR for all seasons.
The Kinesis G2 adventure bike is nimble off the line, fast handling and plenty tough enough for rough and tumble of UK gravel riding. The
perfect four seasons bike for the rider that wants an adventure gravel bike, all year round for British summer and winter weather.
• More capable than a road bike.
• More comfortable than a cross bike.
• More versatile than an out and out gravel bike.
Two decades of bike design have taught us to never stand still and to question everything we see and do to make better product for riders.
What worked ten years ago may not be suitable for today's rider, so we are constantly evolving. This has lead us to our new'Kinesis Rider Fit Design'process.
A semi sloping frame on the smallest bike has not only reduced the stand over height but has also brought the comfort in line with our larger
models. Short chain-stays alongside the revised position gives the Kinesis G2 outstanding road characteristics. Low Bottom Bracket, makes the

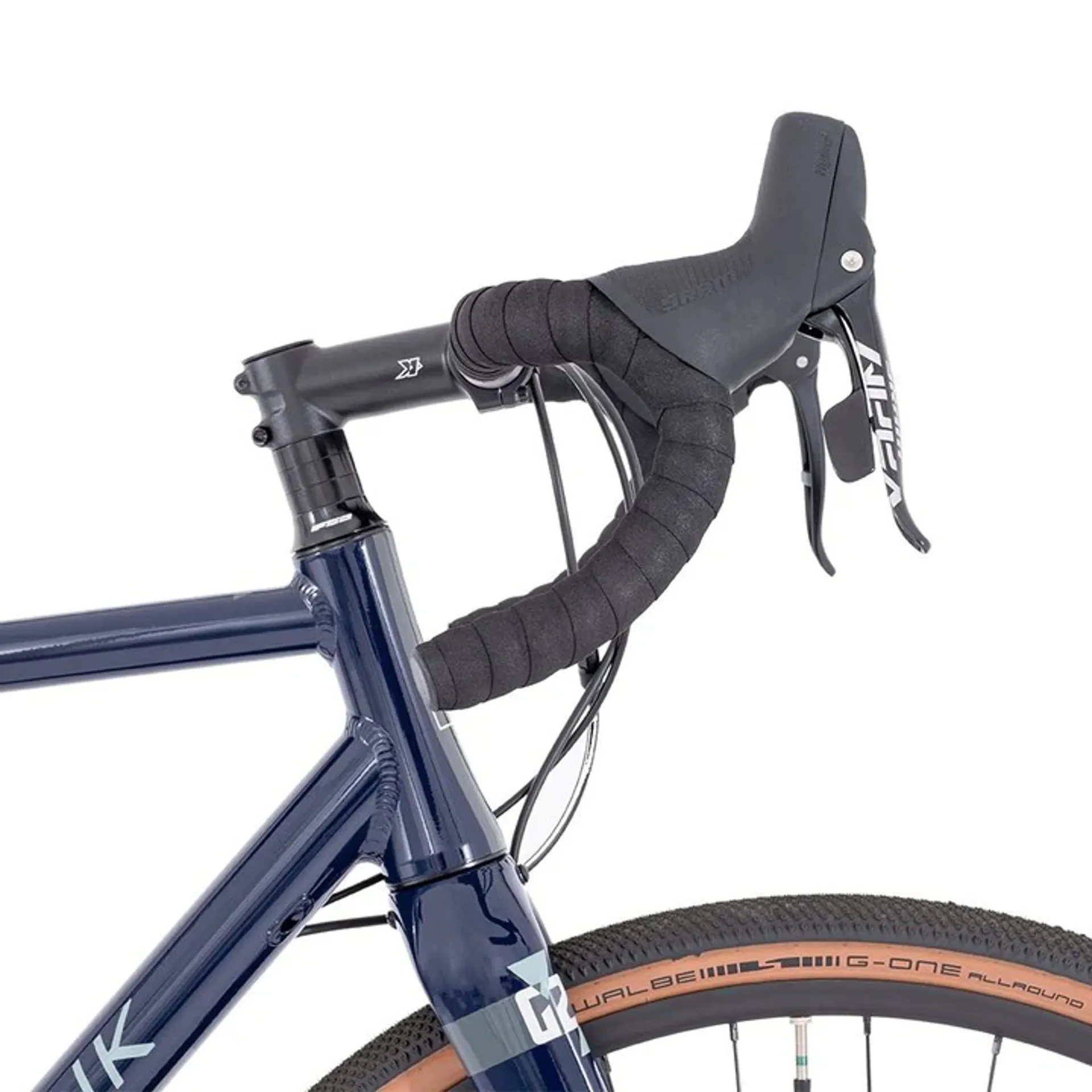

G2 extremely capable off road. Flared Handlebars, short Stem and full Pannier Rack mounts, means the Kinesis G2 Bike is ready for any adventure.
Tyre Clearance:45C (42C with mudguards) on current version, the 2018 production run had 40C (38 with mudguards).
• Internal cable routing.
• Shimano flat mount inboard rear disc calliper mount.
• Rear Axle 12x142mm / Front Axle 12x100mm.
• Rack and bottle cage mounts.
• BB: 68mm BSA.
• Headset: Integrated, 41.8ø upper, 51.8ø lower, for taper head tube. FSA No.42/ACB.
• Weight: 10kg complete (Size Large - 57cm).

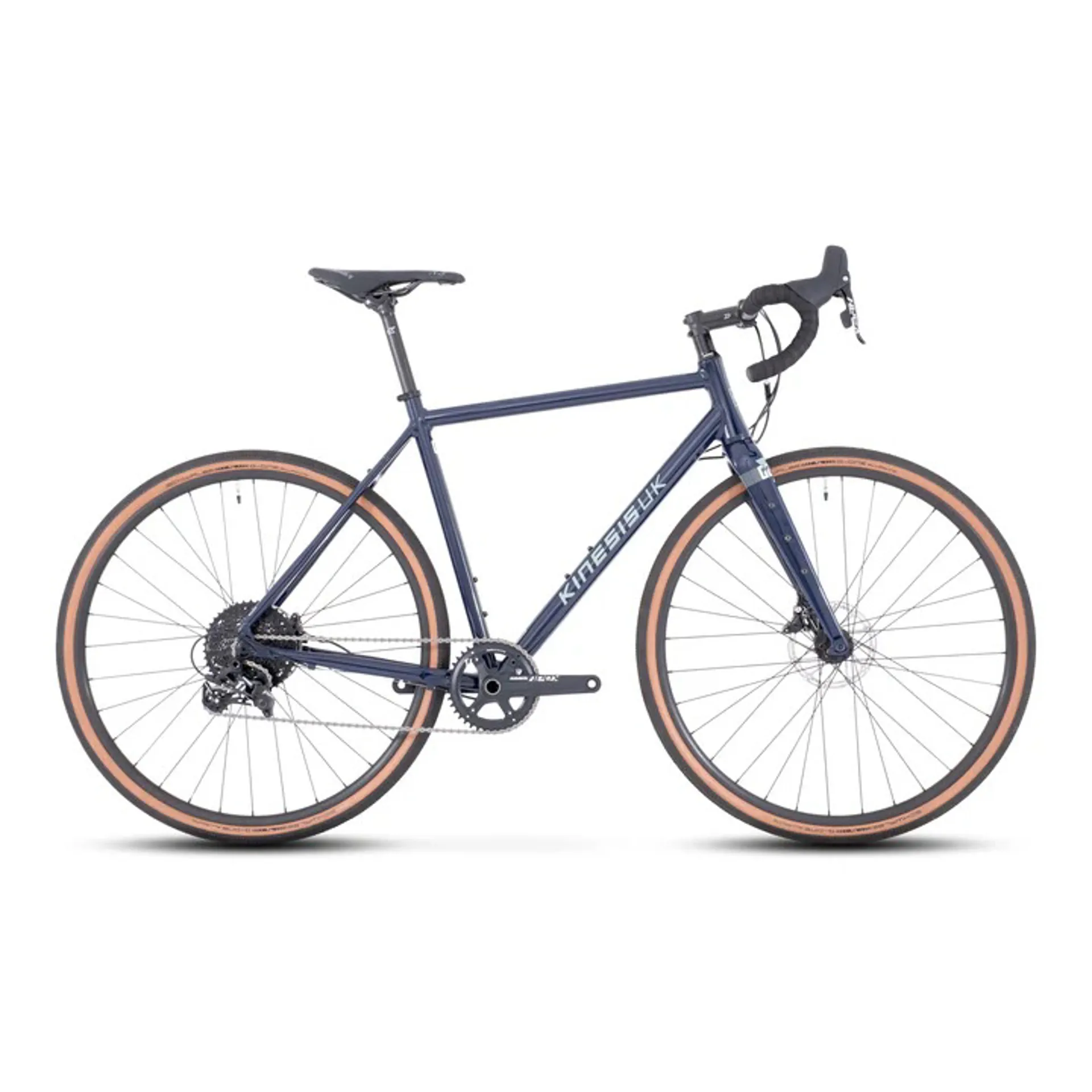

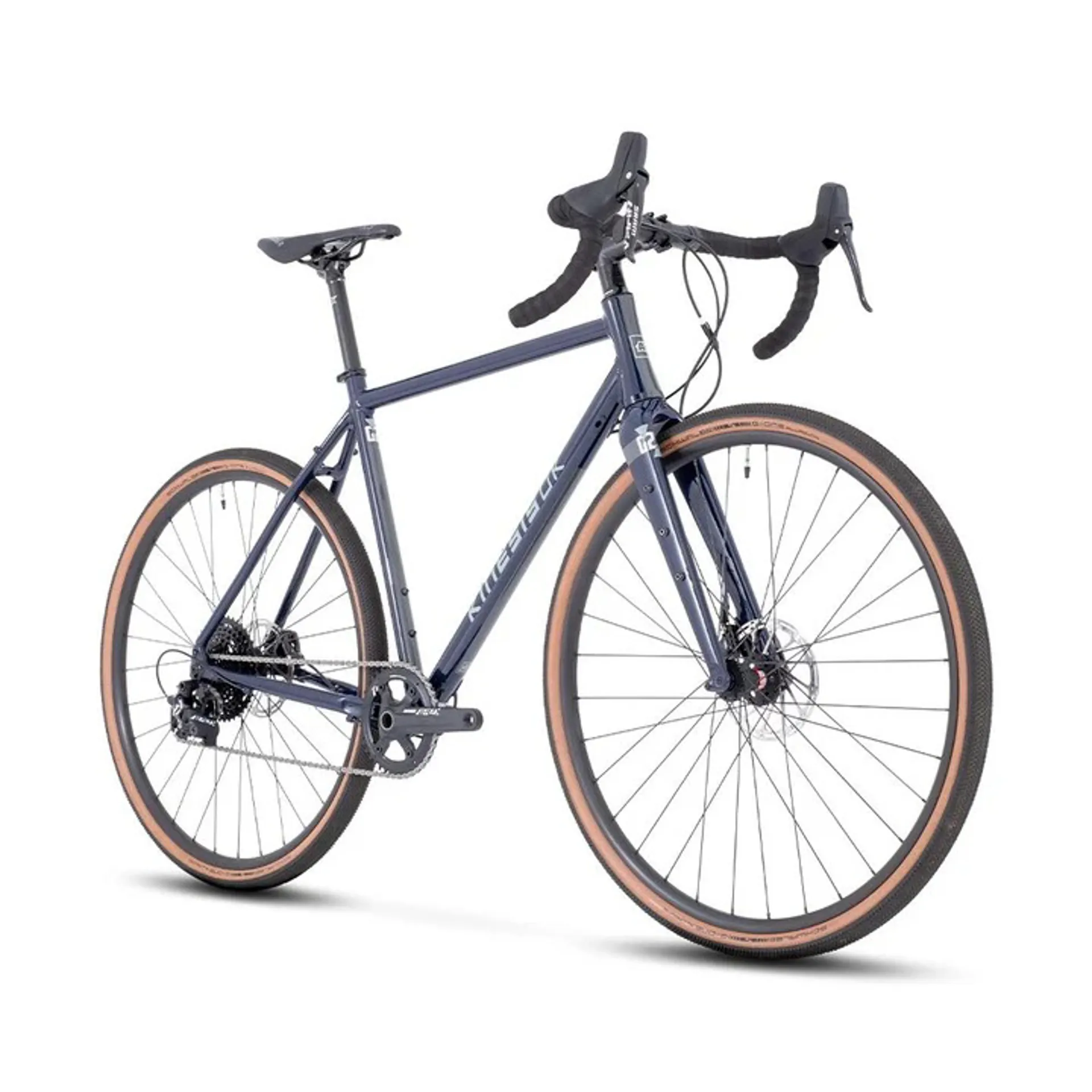

| G2 BIKE |
| COLOUR | Khaki Green or Slate Blue |
| WEIGHT | 10kg Complete (Size Large 57cm) |
| FRAME | Kinesis G2 Double Butted Alloy 6061 |
| FORK | 700C Carbon Fork, Carbon Tapered Steerer, Oval Blades, Flat Disc Mount, 12mm x 100mm Thru Axle |
| SHIFT LEVERS | SRAM Apex 1 |
| REAR MECH | SRAM Apex 1 Long Cage |
| BRAKES | SRAM Apex 1 HYD 160mm Rotors |
| CASSETTE | SRAM PG-1130 POWERGLIDE 11-42 |
| CHAIN | SRAM PC1110 with POWERLOCK |
| CRANK SET | SRAM Apex 1 X-SYNC 40t S(51):170mm M(54):172.5mm L(57):172.5mm XL(60):175mm |
| BOTTOM BRACKET | SRAM BB GXP |
| HUBS | Alloy, Sealed Cartridge Bearing Hub, Centre-lock, Front: 12mm x 100mm | Rear: 12mm x 142mm Through Axle |
| RIMS | Jalco Tubeless Compatible |
| TYRES | Schwalbe G-One Allround 700x40c TLE Tubeless Tyre |
| SEAT POST | Black Alloy 6061 27.2mm, 350mm, 5mm offset OEM |
| SADDLE | Selle Italia X3 Black OEM |
| HANDLEBAR | Black Alloy 6061 OEM S(51):42cm M(54):44cm L(57):44cm XL(60):46cm |
| STEM | Black Alloy 6061 OEM 7° S(51):80mm M(54):90mm L(57):90mm XL(60):100mm |
| HEADSET | FSA No. 42 Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Bearings |
| BAR TAPE | Black Cork Bar Tape OEM |
Pedals are NOT included. These are available separately
The G2 bike will be delivered 95% built
• The rotor needs fitting to front wheel (rotor is boxed between the front wheel and frame, and the lockring is in the spares/manuals box).
• The front wheel needs fitting.
• You’ll need to align the front brake.
• Handlebars need fitting to the stem (the stem comes fitted with a positive rise, and all 3x10mm spacers under the stem).
• Seatpost needs fitting (saddle attached to post).
• The pedal washers are tied to the crank arms.
• The Kinesis G2 bike has been checked prior to packing, however before your first ride the bike must have a PDI (Pre Delivery Inspection) by an authorised Kinesis Dealer.
Also the G2 bike comes with some spares and manuals in a separate box, in the bike box:
• Front rotor lockring (as mentioned above).
• Wheel reflectors.
• Frame reflectors.
• Spare cassette spacer (for 8, 9 or 10 speed cassettes).
• 2x spare hose clips.
• Quick Release axle manual.
• SRAM rotor manual.
• SRAM warranty Manuals
G2 |
| Frame Size Seat Tube | Small (51*) | Medium (54) | Large (57) | X-Large (60) |
A | Set Tube Length C-T | 490 | 540 | 570 | 600 |
B | Top Tube Length Effective | 533 | 547 | 566 | 584 |
C | Head Tube Length | 121 | 147 | 173 | 210 |
D | Head Tube Angle | 71 | 71 | 71 | 71 |
E | Seat Tube Angle | 74 | 74 | 73.5 | 73.5 |
F | Bottom Bracket Drop | 70 | 70 | 70 | 70 |
G | Chain Stay Length | 435 | 435 | 435 | 435 |
H | Front Center | 598 | 613 | 628 | 647 |
I | Wheelbase | 1022.6 | 1037.9 | 1052.7 | 1062.5 |
J | Stack | 545 | 570 | 595 | 630 |
K | Reach | 377 | 384 | 390 | 397 |
L | Fork Length | 395 | 395 | 395 | 395 |
M | Fork Rake | 50 | 50 | 50 | 50 |
|
Choosing the correct bike size for you depends on the type of bike your after, your height, your riding style, and your preference of fit.
A correct fitting bike will provide a more comfortable, more efficient and more fun ride.
Kinesis’s bike size guide gives you some general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts from our contact us page.
To get started, think about your style of riding, measure your height and see the sizing guide below.
